Lubricate Hydraulic Tilt Crop Dividers (If Equipped)

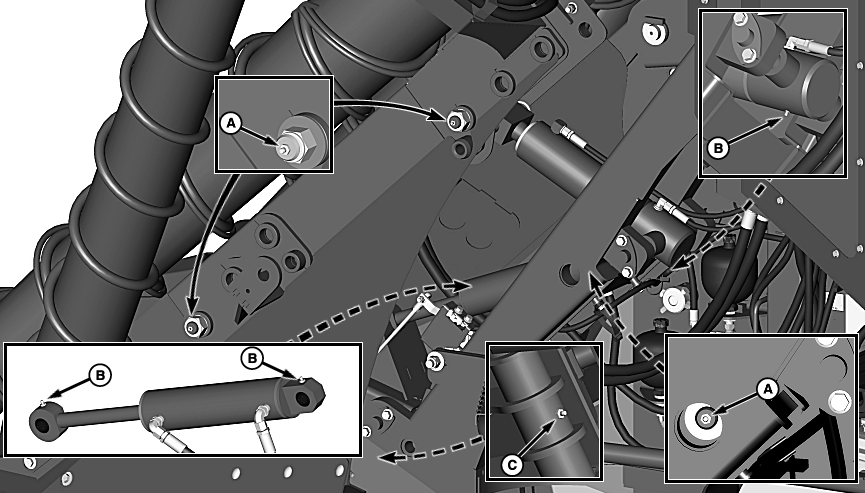

  1. T8T2437
    T8T2437-UN-28APR15

    Some Parts Removed For Clarity

    A - Fittings (6 used)

    B - Fittings (6 used)

    C - Fittings (2 used)

    Grease fittings (A) on crop divider mounting pins. Repeat on other crop divider.


  2. Grease fittings (B) on cylinder ends. Repeat on other crop divider.

  3. Grease fitting (C) on lower crop divider linkage. Repeat on other crop divider.

WM05597,00011CE-19-20150428
