Lubricate Steering Cylinders (Wheel Machines)

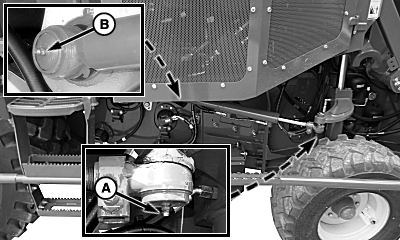

  1. T8T670
    T8T670-UN-07JUL14

    A - Fitting (2 used)

    B - Fitting (2 used)

    Grease fitting (A) on rod end of steering cylinder. Repeat on opposite side of machine.


  2. Grease fitting (B) on barrel end of steering cylinder. Repeat on opposite side of machine.

WM05597,00011CF-19-20150206
