Lubricate Secondary Extractor (If Equipped)

1.
   T8130000116-UN-15JAN13


   T8130000359-UN-24JAN13

   A - Fitting

   B - Fittings (2 used)

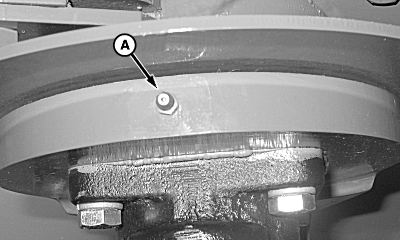

   Grease fitting (A) on secondary extractor motor.

   NOTE: Turn secondary extractor by hand while greasing.

---

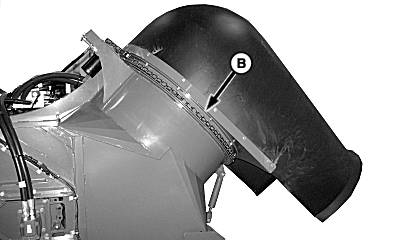

2. Grease fitting (B) located below secondary extractor hood. Repeat on opposite side.
