Inspect Base Cutter Gear Case Mounting Hardware
T8130000311-UN-29JAN13

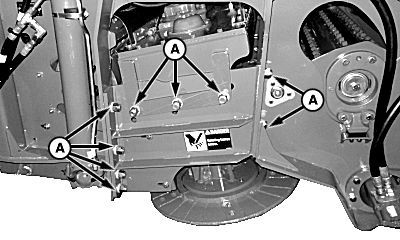

Tracks Removed For Clarity
A - Mounting Hardware (18 used)
Check base cutter mounting hardware (A) for proper torque. Repeat on other side of machine.IMPORTANT: If mounting hardware is loose, clean, apply Thread Lock and Sealer (High Strength) and tighten to specification.
| Item | Measurement | Specification |
| Mounting Hardware | Torque | 427 N·m (315 lb.-ft.) |
|
WM05597,00011DE-19-20150206 |
