Check Engine Vibration Isolators

CAUTION:

T8130000318-UN-30JAN13

T8T187
T8T187-UN-17APR14

T8T190
T8T190-UN-21APR14

Viewed From Above Engine Compartment

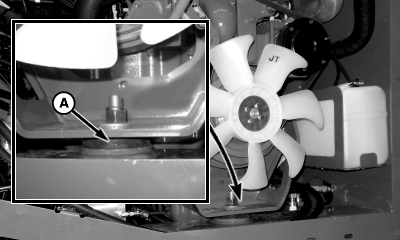

A - Left-Hand Vibration Isolator

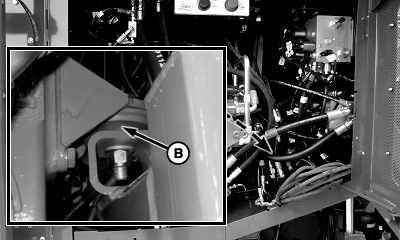

B - Right-Hand Front Vibration Isolator

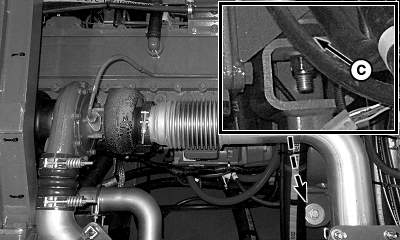

C - Right-Hand Rear Vibration Isolator

Avoid possible serious injury from spinning fan blades. Shut OFF engine and wait for fan to stop completely. Remove key and turn OFF battery disconnect switch before inspecting isolators.

Inspect engine vibration isolators (A—C). If cracked, damaged, or missing; contact your authorized John Deere dealer.

WM05597,00011E2-19-20150206
