Lubricate Crop Divider Scrolls and Outer Scrolls

1. IMPORTANT:


   T8T311-UN-28APR14

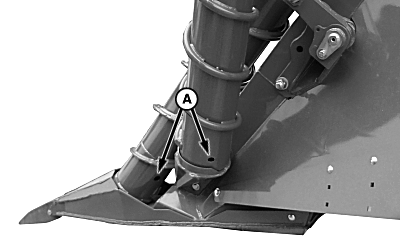

   A - Fittings (2 used)

   Wipe grease fittings clean before and after lubricating. If grease fitting is damaged or missing, replace immediately.

   Apply ONLY three pumps from a hand grease applicator to avoid damaging bearing seal.

   NOTE: Rotate scrolls to align fitting with hole.

   Remove plugs on scrolls and rotate to locate fittings (A).

---




2. Grease fittings and replace plugs. Repeat on opposite side of machine.
