Lubricate Elevator Chain Sprocket

IMPORTANT:

T8140000409
T8140000409-UN-22SEP14

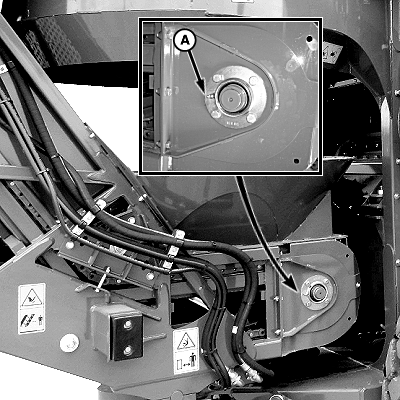

A - Fitting (2 used)

Apply ONLY three pumps from a hand grease applicator to avoid damaging bearing seal.

Grease fitting (A) at base of elevator. Repeat on opposite side of elevator.

WM05597,00011F3-19-20150206
