Lubricate Feed Roller Bearings

  1. IMPORTANT:

    T8T664
    T8T664-UN-07JUL14

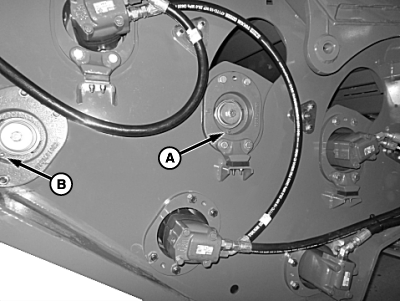

    A - Floating Feed Roller Bearing Fittings (5 used)

    B - Fixed Feed Roller Bearing Fittings (4 used)

    Avoid damaging bearing seal. Apply ONLY three pumps from a hand grease applicator.

    Grease floating feed roller bearing fittings (A). Three fittings are on left-hand side of machine. Two fittings are on opposite side.


  2. Grease fixed feed roller bearing fittings (B). Two fittings are on each side of machine.

WM05597,00011F7-19-20150206
