Adjust Primary Extractor Chain Tension

1. CAUTION:

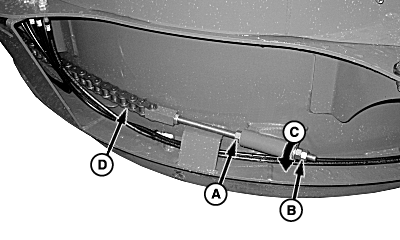

   T8120002636-UN-07JAN13

   A - Jam Nut

   B - Adjustment Nut

   C - Increase Tension Rotation

   D - Extractor Chain

   Avoid serious injury or death, Shut OFF engine, remove ignition key, and wait for harvesting functions to completely stop before servicing extractor.

   NOTE: Tension is adjusted on the right-hand side of extractor hood.

   Loosen jam nut (A).

---




2. Turn adjustment nut (B) to increase or decrease chain tension.

   • Clockwise rotation (C) — increase chain tension
   • Counterclockwise rotation — decrease chain tension



3. Adjust tension until chain (D) does not sag around hood ring. Do not overtighten.
