Replace Front Turn Signal Bulb

1.

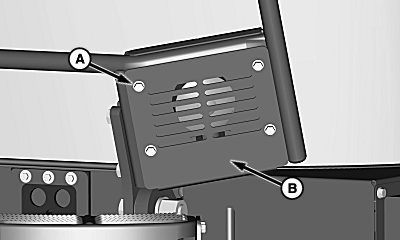

   T8T772-UN-09JUL14

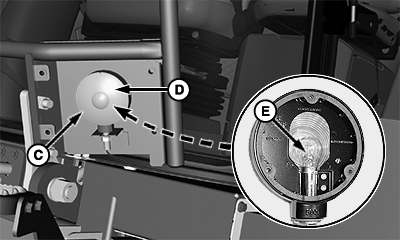

   CQ298953-UN-15APR15

   A - Cap Screws (4 used)

   B - Light Cover

   C - Screws (3 used)

   D - Lens

   E - Bulb

   Remove and retain cap screws (A) and light cover (B).

---




2. Remove and retain screws (C) and lens (D).

3. Push and turn bulb (E) counterclockwise and remove.

4. Replace bulb.

5. Push and turn clockwise bulb (E) to install into front turn signal assembly.

6. Install previously removed lens (D), screws (C), light cover (B), and cap screws (A).
