Clean Out Machine (Annual)

CAUTION:

T8140000383
T8140000383-UN-25MAR14

To prevent injury, never clean machine with engine running and harvesting functions engaged.

The following instructions are recommended when cleaning out machine for storage or before transporting machine on highways.

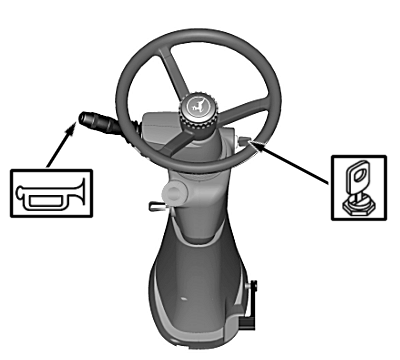

CAUTION: Sound horn to clear everyone from area.

  1. Drive machine over end rows or bumps to loosen and shake off dirt. Shut OFF engine, set parking brake, and remove key.

  2. Drive machine onto blocking so one side is about 150 mm (6 in.) higher, or park on incline so dirt and water run out.

  3. CAUTION:

    H39607
    H39607-UN-11OCT88

    If working with compressed air, wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).

    IMPORTANT: Start at top of machine and work down.

    Lower topper boom and crop dividers.


  4. Raise base cutter and engage base cutter safety stops.

  5. Shut OFF engine, set parking brake, remove key, and block wheels.

  6. T8130000225
    T8130000225-UN-23JAN13

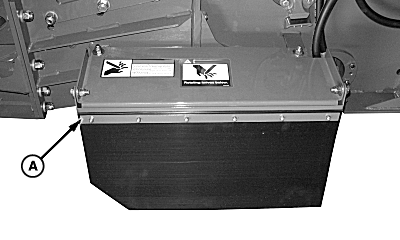

    A - Base Cutter Shield

    Open or remove the following doors, guards, and shields:

    1. Raise base cutter shield (A). Repeat for opposite side of machine.


    2. T8T2428
      T8T2428-UN-24APR15

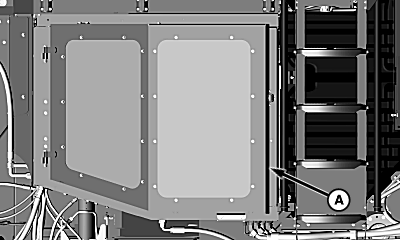

      A - Engine Compartment Door

      Open engine compartment doors (A) on both sides of machine.


    3. T8T2455
      T8T2455-UN-08MAY15

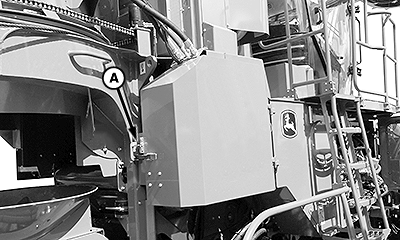

      A - Shield Latch

      Turn shield latch (A) and open door of chopper system.


    4. T8T551
      T8T551-UN-12JUN14

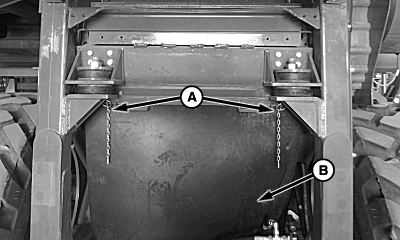

      A - Quick-Lock Pins (2 used)

      B - Chopper Curtain

      Remove quick-lock pins (A) and chopper curtain (B), to access feed rollers.


    5. T8T552
      T8T552-UN-12JUN14

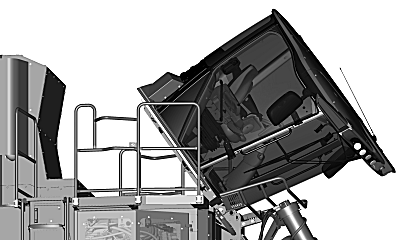

      Tilt cab forward and engage safety stop (see Cab Tilt Procedure in Maintenance—As Required section).


    6. T8T553
      T8T553-UN-12JUN14

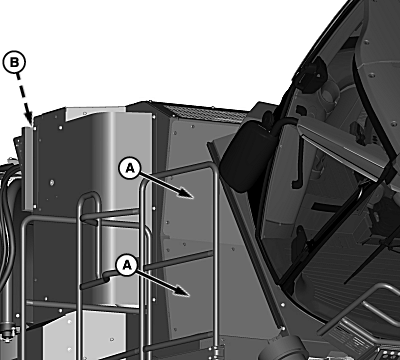

      A - Front Access Panels (2 used)

      B - Radiator Door

      Remove hardware and front access panels (A).

    7. Open radiator door (B).


  7. T8T1982
    T8T1982-UN-07MAY15

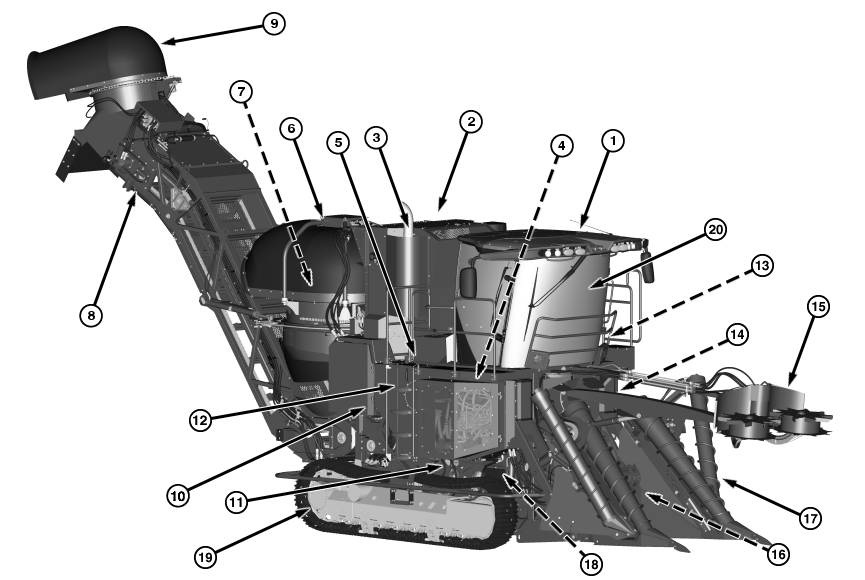

    Starting at the top of machine and working downward, clean the following areas of the machine:

    1. Cab (outside and underneath)
    2. Cooling Tower (fan, motor, radiators, hoses, screens, door)
    3. Exhaust
    4. Top of Engine (turbocharger, hoses, manifolds)
    5. Platform, Ladders, and Brush Rails
    6. Primary Extractor—Exterior (hood, hoses, chain, motor, ring)
    7. Primary Extractor—Interior (fan blades, inner ring, hood)
    8. Elevator (elevator discharge flap, hoses, chain, and slats, wear strips, screens, basket, swing table)
    9. Secondary Extractor (hood, hoses, chain, motor, ring, fan blades)
    10. Chopper (motors, gear case, flywheel, hoses, blades)
    11. Feed Rollers (rollers, mat, floating arms, motors)
    12. Hydraulic Reservoir (fill coupler, vent, fittings)
    13. Fuel Tank (fill cap, vent, shutoff, and drain valves)
    14. Engine Compartment (sides and below engine, hoses, mounts, pump drive gear case, pumps, valves)
    15. Topper and Boom (pivots, hinge points, hoses, motors, gathering and severing disks)
    16. Knockdown Roller (motors, rollers, cylinders, hoses)
    17. Crop Dividers (scrolls, side knives, motors, hoses, lift cylinders, and arms)
    18. Base Cutter (blades, legs, motors, around gear case, hoses)
    19. Drive Components (tracks or wheels, motors, hoses, final drives, suspension)
    20. Glass, Lights, Reflectors, and Reflective Tape


  8. Inspect entire machine for missing hardware, damaged parts, or leaks. Repair as necessary.

  9. Install all previously removed panels, shields, and guards. Close and latch all doors and covers.
