Elevator Discharge Flap

T8130003044
T8130003044-UN-11DEC13

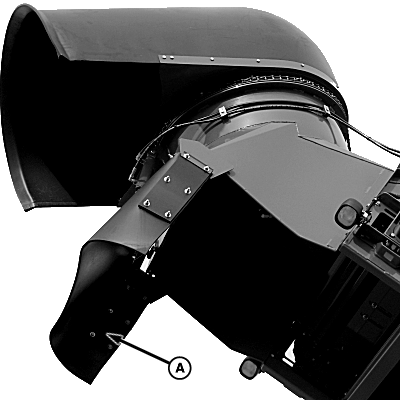

A - Elevator Discharge Flap

Elevator discharge flap (A) controls discharge angle of billets as they exit the elevator. Changing angle of flap allows an operator to fill field transports more efficiently.

Elevator discharge flap is moved by a hydraulic cylinder that is electrically controlled from the cab.

  • Elevator discharge flap out—allows billets to discharge away from elevator.
  • Elevator discharge flap in—allows billets to discharge directly below elevator.
