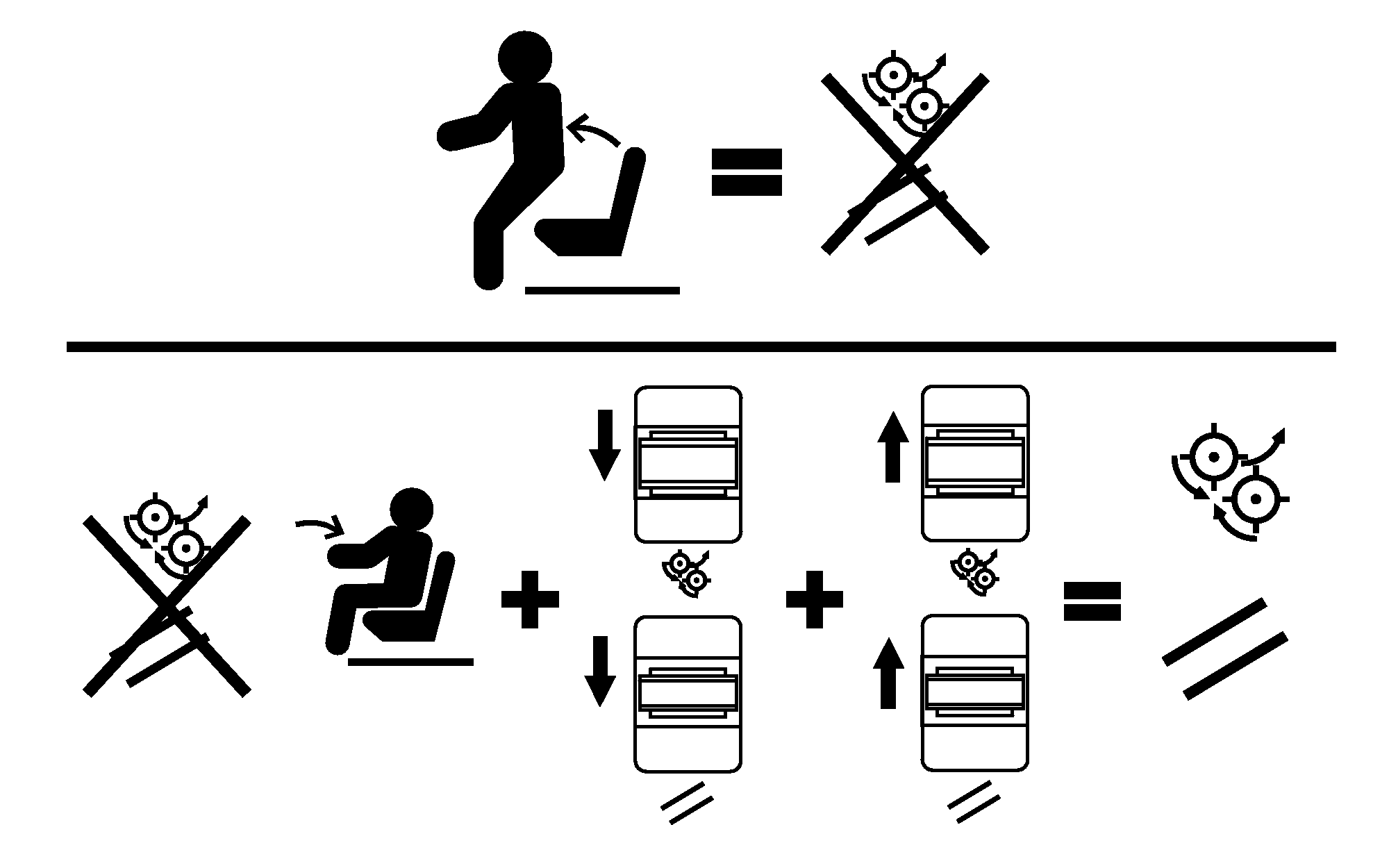

Seat Safety Switch

T8T2445
T8T2445-UN-07MAY15

The operator must be seated and harvesting functions and auxiliary functions switches cycled to start harvesting functions.

If the operator leaves the seat for more than five sec., harvesting functions stop. To restart harvesting functions, the operator must:

  1. Return to a seated position in operator’s seat.
  2. Push down and pull back on harvesting functions switch to middle position.
  3. Push down and pull back on auxiliary functions switch.
  4. Push down and push forward on harvesting functions switch.
  5. Push down and push forward on auxiliary functions switch.
