Lubricate Elevator Swing Table

1. NOTE:

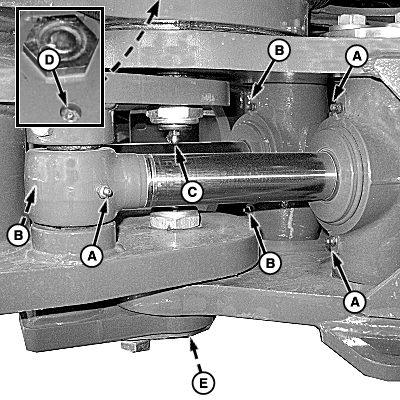

   T8130000114-UN-25JAN13


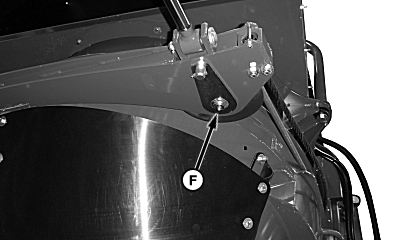

   T8T2956-UN-08SEP15

   A - Fittings (3 used)

   B - Fittings (3 used)

   C - Fitting

   D - Fitting

   E - Fitting

   F - Fitting (2 used)

   In dusty or when harvesting burnt cane, these fittings must be lubricated every 10 h. Extra grease may be required to flush out contaminants.

   Grease fittings (A) on right-hand elevator swing cylinder.

---




2. Grease fittings (B) on left-hand elevator swing cylinder.

3. Grease fitting (C) on bottom of upper swing table pin.

4. NOTE: Lower elevator to access fitting (D).

   Grease fitting (D) on top of upper swing table pin.

5. Grease fitting (E) on bottom of lower swing table pin.

6. Grease fittings (F) on cable mounting pin. Repeat on opposite side of machine.

NOTE: Rotate swing table side to side to verify that the pins are being greased.
