Inspect Primary Extractor Fan Assembly

1. CAUTION:


   T8130000314-UN-30JAN13


   T8130000315-UN-30JAN13


   T8130000316-UN-31JAN13


   T8T2928-UN-12AUG15

   A - Chain

   B - Mounting Hardware (6 used)

   C - Isolator Mounts (4 used)

   D - Hydraulic and Electrical Connections

   E - Blades and Hardware (4 sets used)

   Avoid serious injury or death. Shut OFF engine and wait for harvesting functions to stop completely before inspecting primary extractor assembly.

   Completely rotate hood opening to the left-hand side of machine.

---




2. Shut OFF engine, remove key, and wait for all harvesting functions to stop completely.

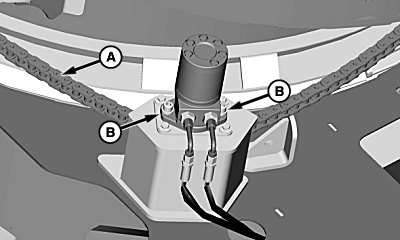

3. Inspect chain (A) for damage or excessive wear. Tighten chain tension if necessary (see Adjust Primary Extractor Chain Tension in Maintenance—As Required section).

4. Verify mounting hardware (B) on motor is tight.

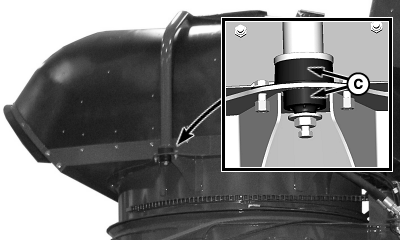

5. Inspect isolator mounts (C) for cracking or damage.

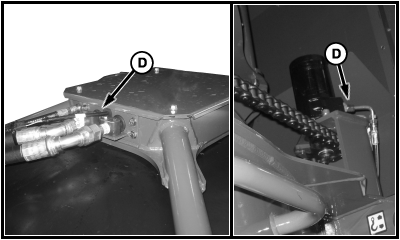

6. Verify all hydraulic and electrical connections (D) are tight.

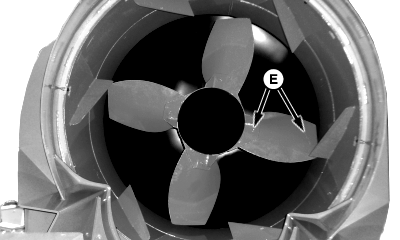

7. Inspect extractor blades and hardware (E) for damage and verify tightness.
