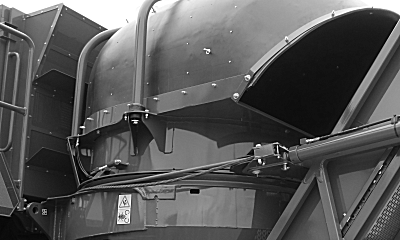

Primary Extractor
T8T2931-UN-13AUG15
Using a fan, the extractor removes trash, leaves, and dirt
from the cane before dropping into the elevator basket. The separated
debris and leaves are directed onto the ground behind the harvester
by the primary extractor hood. This is a major part of the cleaning
process.
Primary Extractor Options:
Duraliner (Vidaplate) Steel Wear Ring—Highly abrasive
resistant material replaces the standard wear ring and prolongs the
life of the wear ring.
|
|
WM05597,000138E-19-20150813
|
|
