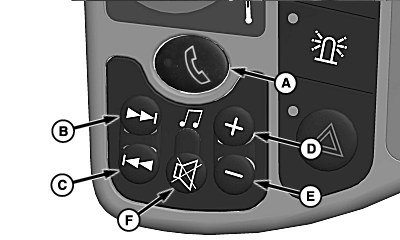

Radio Function Switches (If Equipped)

H105408-UN-11MAY12

Press switch to navigate to phone call page quickly or to answer incoming phone calls or end calls already in process.

Seek Forward Switch (B):

• AM/FM/WX/MW/LW: Press switch (short press) to change to next preset.
• AM/FM/WX/MW/LW: Press switch (long press) to SEEK UP.

Seek Reverse Switch (C):

• AM/FM/WX/MW/LW: Press switch (short press) to change to previous preset.
• AM/FM/WX/MW/LW: Press switch (long press) to SEEK DOWN.

Volume Increase Switch (D):

Press switch to increase audio volume.

Volume Decrease Switch (E):

Press switch to decrease audio volume.

Mute Switch (F):

NOTE: Press switch to mute microphone during a phone call.

Press switch to mute audio. Press switch to resume play of audio music.
