Primary Extractor Screen

T8T672-UN-03OCT14

Sugarcane Main Page 2 Of 3

T8T2939-UN-01SEP15

T8T2940-UN-01SEP15

A - Sugar Main Softkey

B - Primary Extractor Softkey

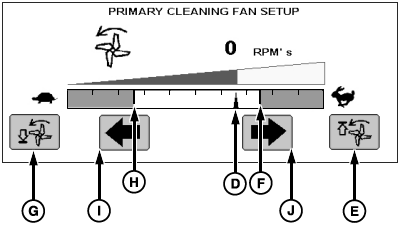

C - Graph

D - Fan Speed rpm Set Point

E - High End Fan Speed Limit Softkey

F - High End Fan Speed Limit

G - Low End Fan Speed Limit Softkey

H - Low End Fan Speed Limit

I - Increase Fan Speed Softkey

J - Decrease Fan Speed Softkey

K - Checkbox

L - Smart Power Mode Set Point

M - Checkbox

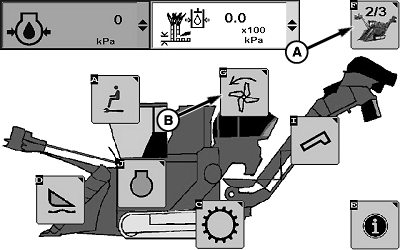

Select sugar main softkey (A) until sugarcane main page 2 of 3 is displayed as shown.

Select primary extractor softkey (B).

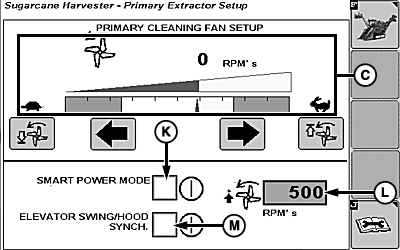

Select fan speed graph (C) and touch corresponding plus (+) or minus (-) softkey to increase or decrease fan speed rpm set point (D). Fan speed may also be adjusted by selecting increase fan speed softkey (I) or decrease fan speed softkey (J).

NOTE: A single select is slow advance. A select and hold is quick advance.

Select high end fan speed limit softkey (E) and touch corresponding plus (+) or minus (-) softkey to increase or decrease high end fan speed limit (F).

Select low end fan speed limit softkey (G) and touch corresponding plus (+) or minus (-) softkey to increase or decrease low end fan speed limit (H).

Select smart mode enable checkbox (K) to allow primary speed to lower to set point when elevator is turned off. Select smart mode set point (L) to adjust smart power mode rpm.

Select checkbox (M) to enable elevator swing/hood synchronization.
