Operate Floating Crop Dividers System

T8T560-UN-13JUN14

T8T2950-UN-01SEP15

T8T1916-UN-28JAN15

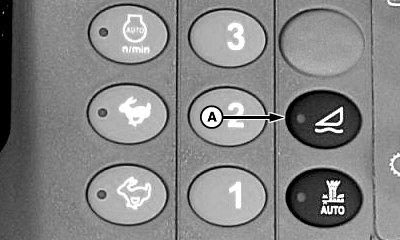

A - Switch

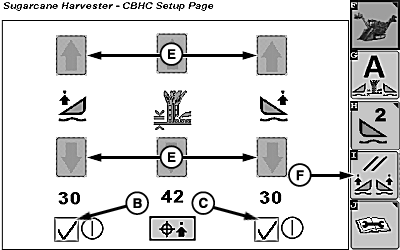

B - Left-Hand Floating Crop Divider Enable Box

C - Right-Hand Floating Crop Divider Enable Box

D - Left-Hand and Right-Hand Crop Divider Down Switches

E - Floating Crop Divider Pressure Increase and Decrease Softkeys

F - Floating Crop Divider Reset Softkey

G - Left-Hand and Right-Hand Crop Divider Up Switches

1. NOTE: Any time key switch has been turned off, reset floating crop dividers switch.

   Press switch (A) to enable or disable Floating Crop Dividers.

2. NOTE: Operator may enable left-hand, right-hand, or both floating crop dividers.

   Corresponding enable boxes (B and C) must display checkmark within armrest display to enable floating crop dividers for desired side or sides.

3. Turn OFF park brake switch and position harvester at beginning of row.

4. Engage harvesting functions in forward motion.

5. Verify that multi-function lever is in neutral or forward position.

6. Press left-hand or right-hand crop divider down switch (D) once (single-click) to activate both floating crop dividers.

   NOTE: If machine is turned off with floating crop dividers system active, cycle reset switch and then cycle floating crop dividers switch.

7. To adjust target, press floating crop divider increase or decrease softkeys (E) for corresponding crop divider.

8. To return setting back to 50% pressure percentage, press floating crop divider reset softkey (F).

To turn OFF Floating Crop Dividers: Press left-hand or right-hand crop divider up switch (G) twice (double-click) to activate end of row function and disengage floating crop dividers.

A single click and hold of crop divider up switch manually raises that side only. After five seconds, the crop divider resumes float.

To turn OFF floating crop dividers, turn off floating crop dividers switch (A).
