Check and Clean Ground Connections

T8130000224
T8130000224-UN-23JAN13

T8T2954
T8T2954-UN-03SEP15

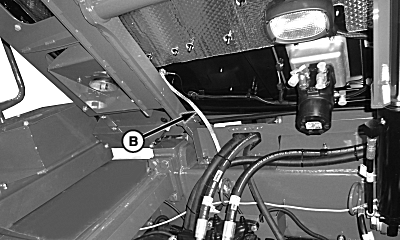

Viewed With Cab Tilted

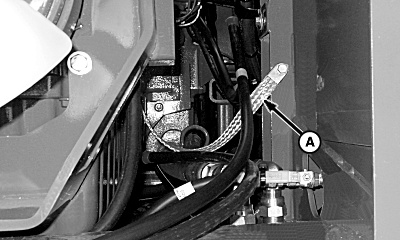

A - Engine Ground Strap

B - Cab Ground Strap

Check engine ground strap (A) and cab ground strap (B) for fraying or damage. Verify that connection points are clean and tight.

NOTE: Cab must be tilted to access cab ground strap.

WM05597,00013A8-19-20150903
