Lubricate Chopper Bearings

IMPORTANT:

T8T1564
T8T1564-UN-11NOV14

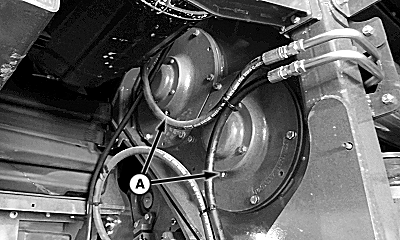

Left-Hand Side Of Machine Shown

A - Fittings (2 used)

Apply ONLY three pumps from a hand grease applicator to avoid damaging bearing seal.

Grease fittings (A) on chopper bearings.

WM05597,00013AD-19-20150908
