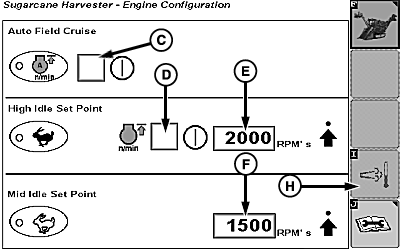

Engine Setup Screen

T8T671
T8T671-UN-03OCT14

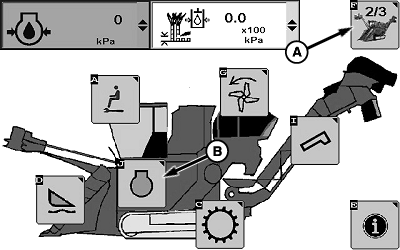

Sugarcane Main Page 2 Of 3

T8T2937
T8T2937-UN-20AUG15

T8T2806
T8T2806-UN-16JUN15

A - Sugar Main Softkey

B - Engine Information Softkey

C - Checkbox

D - Checkbox

E - Manual FieldCruise™ Set Point

F - Mid Idle Set Point

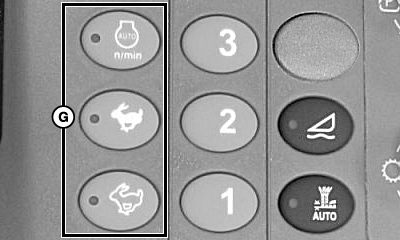

G - Engine Speed Switches (3 used)

H - Not Used

Automatic FieldCruise™ keeps engine speed at 2000 rpm until harvester needs more power. When power is needed the engine speed is increased to 2210 rpm Engine speed is automatically increased and decreased as needed.

  1. Select sugar main softkey (A) until sugarcane main page 2 of 3 is displayed as shown.

  2. Select engine information softkey (B).

  3. Select checkbox (C) to enable Automatic FieldCruise™.

  4. Select checkbox (D) to enable Manual FieldCruise™.

    NOTE: Set point is modified by selecting (+) or (-) softkey on screen.

  5. Select Manual FieldCruise™ set point (E) to modify.

  6. Select mid idle set point (F) to modify.

  7. Press corresponding engine speed switch (G) to engage desired engine speed.

    NOTE: If checkboxes (C and D) are both checked, operator can toggle between Automatic FieldCruise™ and Manual FieldCruise™ using engine speed switches (G).

FieldCruise is a trademark of Deere & Company

WM05597,00013AE-19-20150909
