Check Engine Oil Level

1. IMPORTANT:

   •
     T8T182-UN-16APR14

     Tier 2/Stage II And Tier 3/Stage III


     T8120001914-UN-18OCT12


     T8T1776-UN-07JAN15

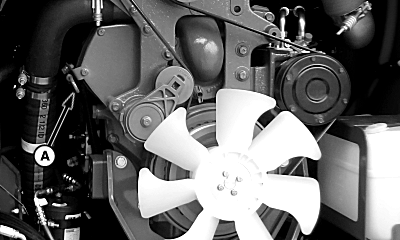

     A - Dipstick

     B - Crosshatch Pattern on Dipstick

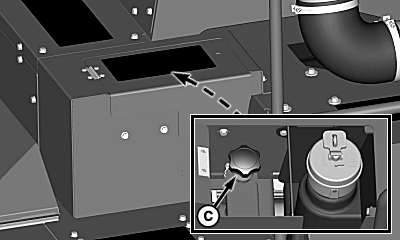

     C - Oil Fill Tube

     Always check the engine oil level before start the engine.

   ---

   • Do not add makeup oil until the oil level is BELOW the add mark.



   Park harvester on a level surface.

---




2. IMPORTANT: Clean debris and dirt from dipstick and dipstick tube before removing. Clean any dirt or residue from dipstick before replacing in dipstick tube.

   Remove dipstick (A) from engine, wipe clean, and reinsert completely.

3. Remove dipstick and check level of oil on end. Level must fall in the range of crosshatch pattern (B).

4. IMPORTANT: Clean debris and dirt from engine oil fill cap and tube before removing cap.

   DO NOT fill above the top mark on the dipstick. Oil levels anywhere within the crosshatch are considered to be in the acceptable operating range.

   If necessary, add oil at the fill tube (C).
