Check Air Intake System

IMPORTANT:

T8T302
T8T302-UN-28APR14

Tier 2/Stage II And Tier 3/Stage III

T8T548
T8T548-UN-10JUN14

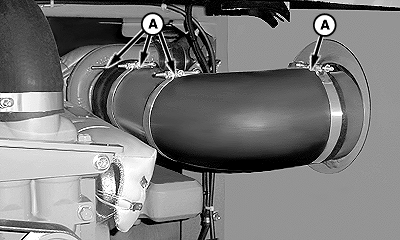

A - Clamps

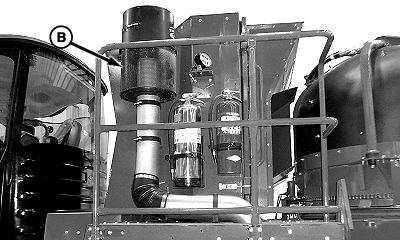

B - Engine Air Pre-Cleaner

The air intake system must not leak. Any leak, no matter how small, may result in internal engine damage due to abrasive dirt and dust entering the intake system.

The engine air intake system is on the left-hand side of cooling tower.

  1. Inspect all piping for leaks or damage.

  2. Verify all clamps (A) are in place and tight. Tighten clamps to specification.

    ItemMeasurementSpecification
    ClampsTorque9 N·m (80 lb·in)

  3. Verify engine air pre-cleaner (B) has proper air movement, clean screens, and no damage.

WM05597,00013B3-19-20150910
