Check Cooling Package Vibration Isolators

1. CAUTION:

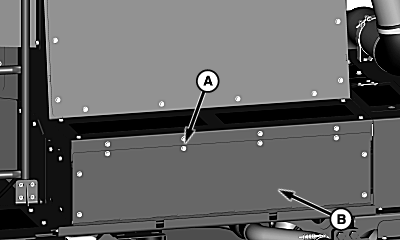

   T8T305-UN-28APR14

   Tier 2/Stage II And Tier 3/Stage III

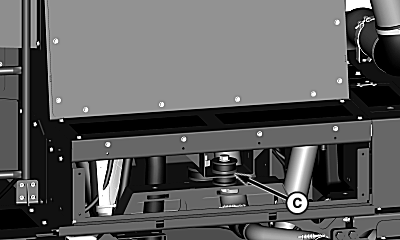

   T8T306-UN-28APR14

   Tier 2/Stage II And Tier 3/Stage III

   A - Hardware (8 used)

   B - Shield

   C - Vibration Isolator

   Avoid possible serious injury from spinning fan blades. Shut OFF engine and wait for cooling fan to stop completely. Remove key and turn OFF battery disconnect switch before inspecting isolators.

   Remove and retain hardware (A) and shield (B).

---




2. Inspect front cooling tower vibration isolators (C). If cracked, damaged, or missing; contact your authorized John Deere dealer.

3.

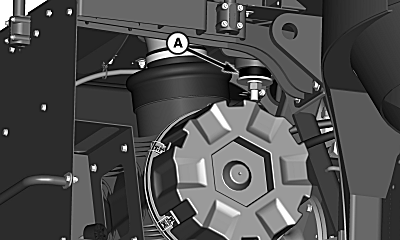

   T8T1911-UN-27JAN15

   Left-Hand Side Of Machine Shown

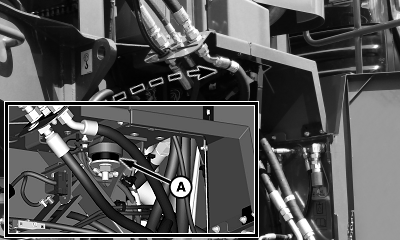

   T8T2447-UN-07MAY15

   Right-Hand Side Of Machine Shown

   A - Vibration Isolators (2 used)

   Inspect rear cooling tower vibration isolators (A). If cracked, damaged, or missing; contact your authorized John Deere dealer.

---
