Side Knife Switches (If Equipped)

NOTE:

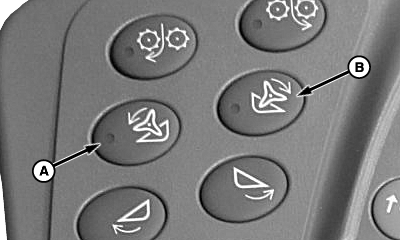

T8T1646-UN-24NOV14

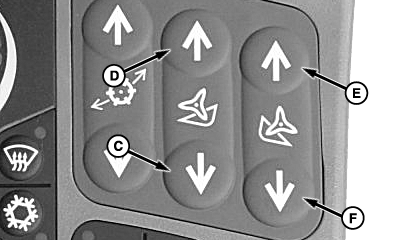

T8T3375-UN-27OCT15

A - Left-Hand Side Knife Engage Switch

B - Right-Hand Side Knife Engage Switch

C - Left-Hand Side Knife Raise Switch

D - Left-Hand Side Knife Lower Switch

E - Right-Hand Side Knife Lower Switch

F - Right-Hand Side Knife Raise Switch

Press left-hand or right-hand side knife engage switch (A and B) to turn ON desired side knife.

Press side knife raise or lower switch (C—F) to adjust side knife to desired position.
