Lubricate Upper Knockdown Roller

T8T3377
T8T3377-UN-29OCT15

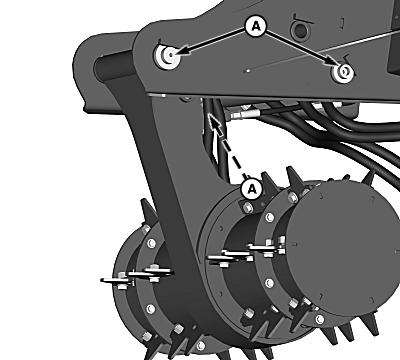

A - Fittings (3 used)

Grease fittings (A) on upper knockdown roller.

NOTE: Manual and hydraulically adjustable knockdown roller fittings are similar.

WM05597,00013CF-19-20151029
