Adjust Manually Adjustable Knockdown Rollers Tilt (If Equipped)

Adjust upper knockdown roller tilt.

1. CAUTION:

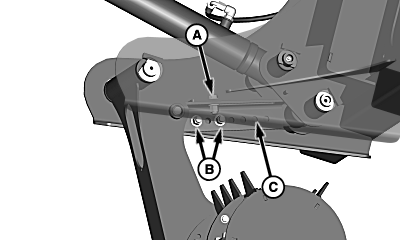

   T8T1240-UN-24SEP14

   Some Parts Removed For Clarity

   A - Hardware

   B - Hardware (2 used)

   C - Mounting Positions

   Avoid serious injury or death from falling equipment. Support weight of knockdown roller assembly before removing or loosening any hardware.

   Use appropriate lifting device to support and position knockdown roller.

   Support upper knockdown roller with appropriate lifting device.

---




2. Loosen hardware (A) and remove hardware (B) from linkage.

3. Adjust upper knockdown roller until tilt is at desired setting.

4. Install previously removed hardware (B) in desired mounting position (C).

5. Tighten hardware (A).

Adjust lower knockdown roller tilt.—Style A

1. CAUTION:

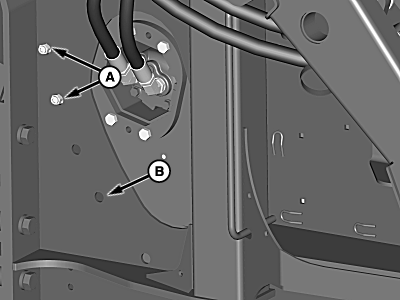

   T8T1291-UN-24SEP14

   Right-Hand Side Of Machine Shown

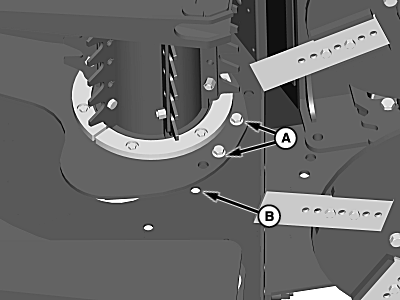

   T8T1292-UN-24SEP14

   Viewed From Below Machine

   A - Hardware (4 used)

   B - Mounting Position

   Avoid serious injury or death from falling equipment. Support weight of knockdown roller assembly before removing or loosening any hardware.

   Use appropriate lifting device to support and position knockdown roller.

   Support lower knockdown roller with appropriate lifting device.

---




2. Remove hardware (A) from both sides of machine.

3. Adjust lower knockdown roller until tilt is at desired setting.

4. Install previously removed hardware in desired mounting position (C).

Adjust lower knockdown roller.—Style B

1. CAUTION:

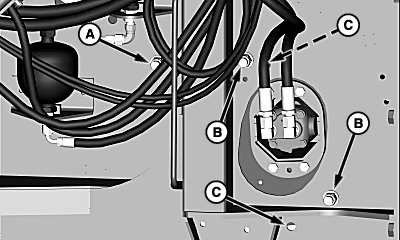

   T8T3385-UN-08DEC15

   Raised Position

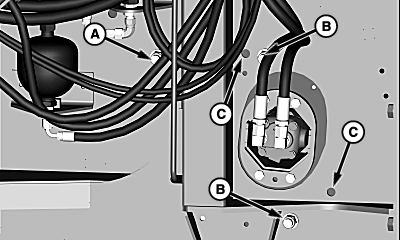

   T8T3386-UN-08DEC15

   Lowered Position

   A - Hardware

   B - Hardware (2 used)

   C - Mounting Position

   Avoid serious injury or death from falling equipment. Support weight of knockdown roller assembly before removing or loosening any hardware.

   Use appropriate lifting device to support and position knockdown roller.

   Support lower knockdown roller with appropriate lifting device.

---




2. Loosen hardware (A) and remove and retain hardware (B) from both sides of machine.

3. Adjust lower knockdown roller until tilt is at desired setting.

4. Install previously removed hardware in desired mounting position (C).

5. Tighten previously loosened hardware.
