Lubricate Suspension Cylinders


Lubricate upper suspension cylinders for track machines.

  1. IMPORTANT:

    CQ298948
    CQ298948-UN-15APR15

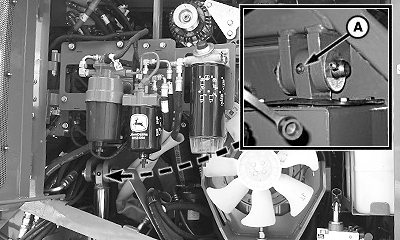

    Left-Hand Side Of Engine Compartment Shown

    T8140000405
    T8140000405-UN-24APR14

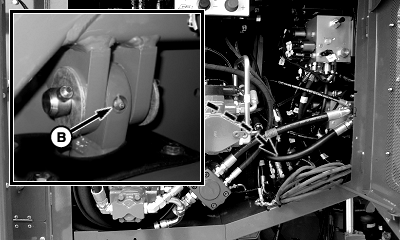

    Right-Hand Side Of Engine Compartment Shown

    A - Fitting

    B - Fitting

    Wipe grease fittings clean before and after lubricating. If grease fitting is damaged or missing, replace immediately.

    Grease fitting (A) at top of cylinder on right-hand side of machine.


  2. Grease fitting (B) at top of cylinder on left-hand side of machine.


Lubricate lower suspension cylinder for track machines.

T8130000110
T8130000110-UN-15JAN13

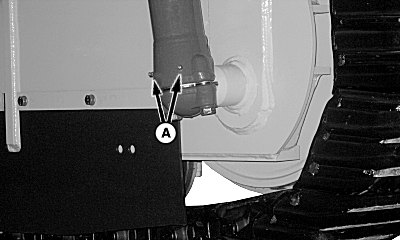

Style A

T8T3384
T8T3384-UN-08DEC15

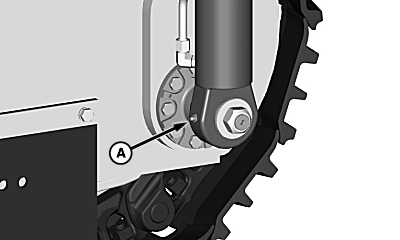

Style B

A - Fittings (4 or 2 used)

Grease fittings (A) on suspension cylinder end. Repeat on opposite side.

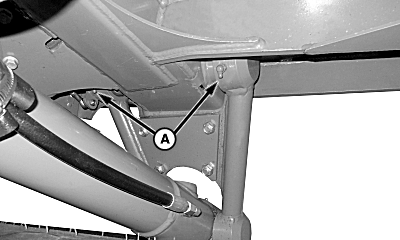

Lubricate lower suspension cylinder for wheel machines.

T8T1565
T8T1565-UN-11NOV14

T8130000140
T8130000140-UN-24JAN13

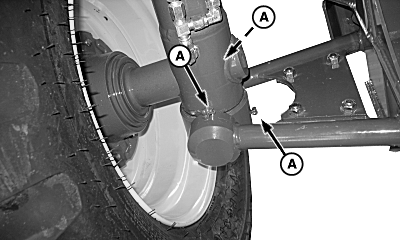

A - Fittings (10 used)

Grease fittings (A) on lower suspension assembly. Repeat on opposite side of machine.
