Harvester Activity Monitor

T8T644-UN-03OCT14

Sugarcane Main Page 2 Of 3

A - Sugar Main Softkey

B - Harvester Activity Monitor Softkey

Select harvester activity monitor softkey (B).

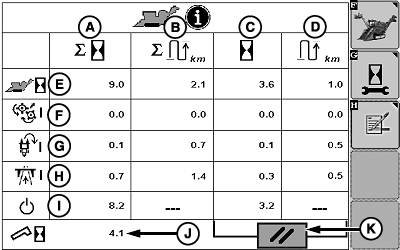

T8T3389-UN-15DEC15

A - Accumulated Hours

B - Accumulated Distance

C - Hours since last reset

D - Distance since last reset

E - Harvester Engine Hours

F - Harvesting

G - Headland Maneuver

H - Road Travel

I - Waiting

J - Elevator Hours

K - Reset Softkey

• Harvester Engine Hours (E)
• Harvesting (F)
• Headland Maneuver (G)
• Road Travel (H)
• Waiting (I)

Elevator hours (J) are also displayed on this page.

Hours since last reset (C) and distance since last reset (D) is cleared by selecting and holding reset softkey (K) for two sec.

NOTE: Harvester activity monitor logs data to a universal serial bus (USB) drive as long as it is connected to USB port.

	Type	Conditions
E	Harvester Engine Hours	• Engine On
F	Harvesting	• Base Cutter On • Base Cutter Pressure greater than low-pressure limit • Vehicle speed greater than 0.2 km/h (0.124 mph)
G	Headland Maneuver1	• Base Cutter On • Base Cutter Pressure less than low-pressure limit • Vehicle speed greater than 0.2 km/h (0.124 mph)
H	Road Travel	• Base Cutter OFF • Vehicle speed greater than 0.2 km/h (0.124 mph)
I	Waiting	Harvester - (Harvesting + Headland Maneuver + Road Travel)
