Armrest Console Controls

NOTE:

T8T543-UN-04NOV14

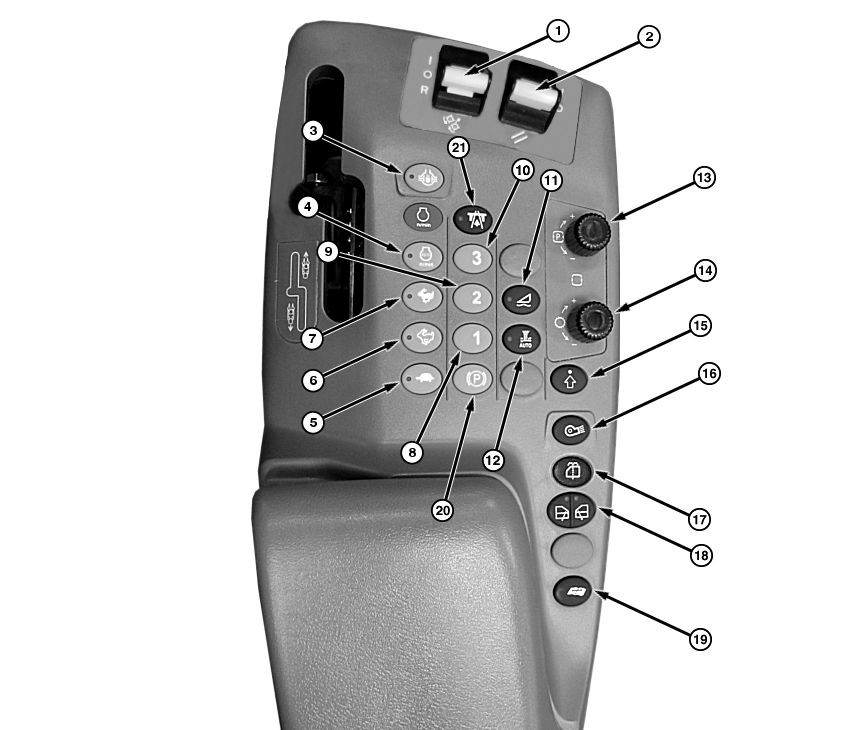

1 - Harvesting Functions (Crop Divider, Base Cutter, Feed Rollers, and Chopper) Switch

2 - Auxiliary Function Switch

3 - Positive Traction Engage Switch (If Equipped)

4 - Automatic FieldCruise™ Engage Switch

5 - Low Engine Speed Switch

6 - Medium Engine Speed Switch

7 - High Engine Speed Switch

8 - Low Travel Speed Switch

9 - Medium Travel Speed Switch

10 - High Travel Speed Switch (If Equipped

11 - Floating Crop Dividers Enable Switch

12 - Contour Base Cutter Height Control Enable Switch

13 - Configurable Encoder

14 - Propulsion Encoder

15 - Alarm and Operator Controls Switch

16 - Cooling Fan Reversing Switch

17 - Side Windows Washer Switch (If Equipped)

18 - Side Windows Wiper Switches (If Equipped)

19 - Diagnostic Switch

20 - Park Brake Switch

21 - Road Transport Disconnect Switch

Before operating machine, become familiar with switches and controls.
