Configure Lower Region Information

1.
   T8T644-UN-03OCT14

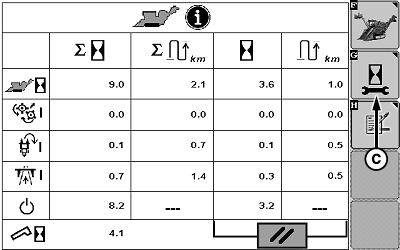

   Sugarcane Main Page 2 of 3


   T8T3388-UN-15DEC15

   A - Sugar Main Softkey

   B - Harvester Activity Monitor Softkey

   C - Lower Region Settings Softkey

   Select sugar main softkey (A) until sugarcane main page 2 of 3 is displayed as shown.

---




2. Select harvester activity monitor softkey (B).

3. Select lower region settings softkey (C).

4.

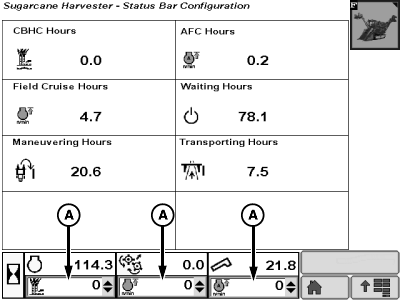

   T8T2434-UN-28APR15

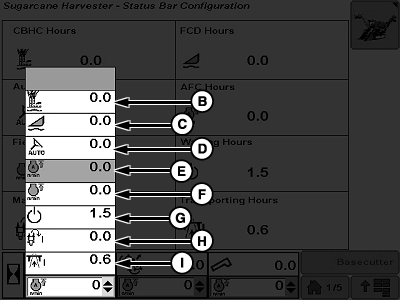

   T8T2942-UN-01SEP15

   A - Hour Meter Softkeys (3 used)

   B - Contour Base Cutter Height Control Hours (If Equipped)

   C - Floating Crop Divider Hours (If Equipped)

   D - AutoTrac™ Hours (Track Machines)

   E - Automatic FieldCruise™ Hours

   F - FieldCruise™ Hours

   G - Waiting Hours

   H - Maneuvering Hours

   I - Transporting Hours

   Select hour meter softkey (A) you wish to replace.

---




5. Select desired hour meter (B—G) to replace original. Hour meters available:

   • Contour Base Cutter Height Control Softkey (B)
   • Automatic FieldCruise™ Hours (C)
   • FieldCruise™ Hours (D)
   • Waiting Hours (E)
   • Maneuvering Hours (F)
   • Transporting Hours (G)
