CommandARM™ Controls

NOTE:

T8T3374-UN-27OCT15

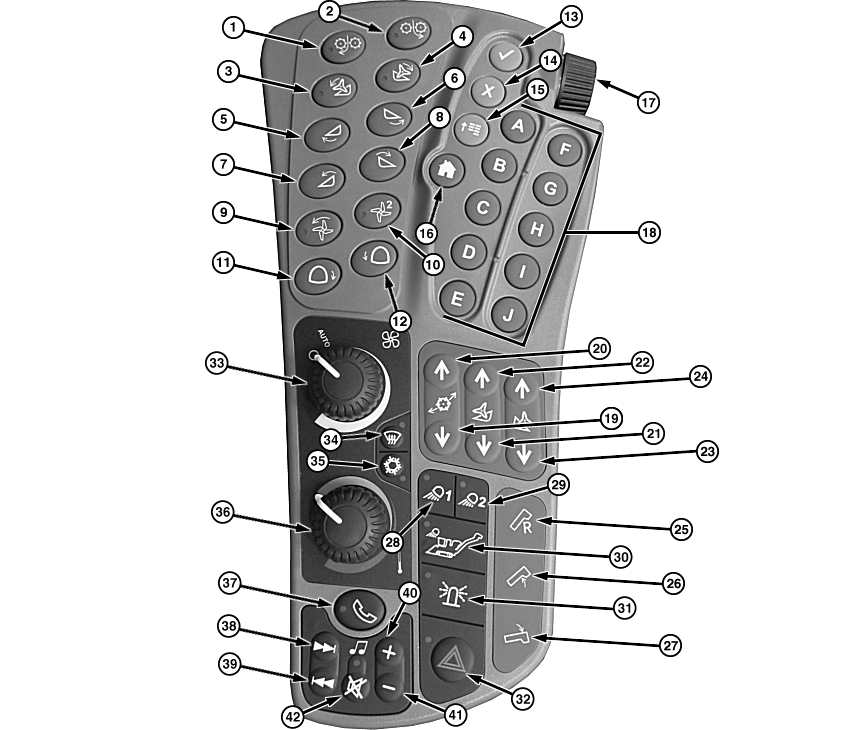

1 - Left-Hand Topper Engage Switch

2 - Right-Hand Topper Engage Switch

3 - Left-Hand Side Knife Engage Switch (If Equipped)

4 - Right-Hand Side Knife Engage Switch (If Equipped)

5 - Left-Hand Crop Divider Tilt Up Switch (If Equipped)

6 - Right-Hand Crop Divider Tilt Up Switch (If Equipped)

7 - Left-Hand Crop Divider Tilt Down Switch (If Equipped)

8 - Right-Hand Crop Divider Tilt Down Switch (If Equipped)

9 - Primary Extractor Engage Switch

10 - Secondary Extractor Engage Switch (If Equipped)

11 - Primary Extractor Hood Rotate Left Switch

12 - Primary Extractor Hood Rotate Right Switch

13 - Confirm Switch

14 - Cancel Switch

15 - Main Menu Switch

16 - Home Switch

17 - Selection Dial

18 - A—J Shortcut Switches

19 - Knockdown Roller Raise Switch

20 - Knockdown Roller Lower Switch

21 - Left-Hand Side Knife Raise Switch

22 - Left-Hand Side Knife Lower Switch

23 - Right-Hand Side Knife Raise Switch

24 - Right-Hand Side Knife Lower Switch

25 - Elevator Reverse Switch

26 - Elevator Raise Switch

27 - Elevator Lower Switch

28 - Not Used

29 - Engine Compartment Lights Switch

30 - Auxiliary Field Lights Switch

31 - Beacon Lights Switch

32 - Hazard Warning Lights Switch

33 - Fan Speed Control Dial

34 - Defrost Switch

35 - Air Conditioner Switch

36 - Temperature Control Dial

37 - Push-To-Talk Switch (If Equipped)

38 - Seek Forward Switch (If Equipped)

39 - Seek Reverse Switch (If Equipped)

40 - Volume Increase Switch (If Equipped)

41 - Volume Decrease Switch (If Equipped)

42 - Mute Switch (If Equipped)

Before operating machine, become familiar with switches and controls.
