Change Pump Drive Gear Case Oil

1. NOTE:

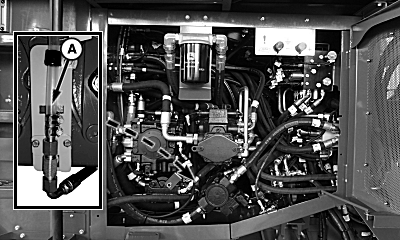

   T8T3539-UN-15JAN16

   Right-Hand Side Of Machine Shown

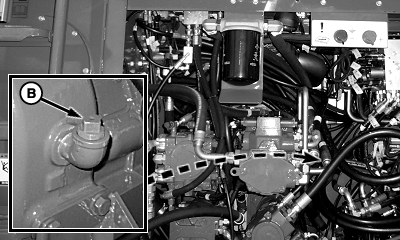

   T8T402-UN-24APR15

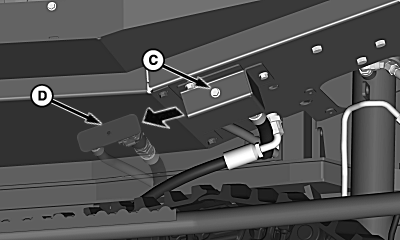

   T8T2438-UN-28APR15

   Right-Hand Side Of Machine Shown

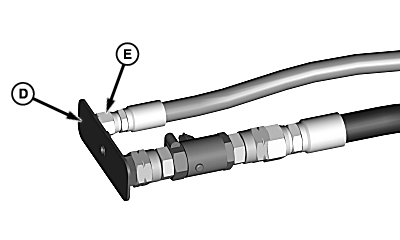

   T8T2439-UN-28APR15

   A - Sight Gauge

   B - Fill Plug

   C - Cap Screw

   D - Drain Plate

   E - Drain Hose

   Warm oil before draining.

   Clean and remove fill plug (B).

---




2. Remove and retain cap screw (C) and slide drain plate (D) to rear of machine.

3. Remove pump drive drain hose (E) from drain plate.

4. NOTE: Machine has extra hose length to drain oil into approved container. Verify hose routing when draining oil so that all oil is removed from oil pan. Care must be taken when replacing excess hose back into engine compartment.

   Pull hose out of engine compartment completely. Secure hose inside an appropriate container and completely drain oil.

5. Replace engine oil drain hose to plate. Install previously plate and retain with previously removed cap screw.

   NOTE: Dispose of oil according to employer and government guidelines.

6. Fill gear case to proper level in sight gauge (A). Allow time for oil to settle.

7. Replace fill plug.
