Message Center Application

T8120001781-UN-09OCT12

H95846-UN-31MAR10

Message Center Application Softkey

Select message center softkey.

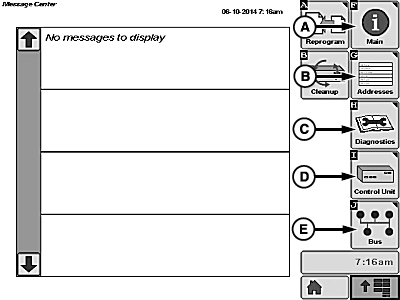

Message Center Softkey (A):

T8T762-UN-09JUL14

T8T4651-UN-12AUG16

Displays messages or active trouble codes to operator if any are available.

Diagnostic Address Softkey (B):

NOTE: If equipped with optional GreenStar™ 3 2630 Display, do not attempt to access diagnostic address information on both displays at the same time.

Select diagnostic address softkey.

Allows operator to select desired control units and make address modifications/changes or view addresses (see your John Deere Dealer).

Diagnostic Trouble Codes Softkey (C):

NOTE: If equipped with optional GreenStar™ 3 2630 Display, do not attempt to access diagnostic trouble codes on both displays at the same time.

Select diagnostic trouble codes softkey.

Allows operator to view control units, trouble code addresses, code (active or not), and counts how many times codes are displayed (see Accessing Diagnostic Trouble Code Menu in Diagnostic Trouble Codes Section for further information).

Electronic Control Unit Information (ECU) Softkey (D):

Select electronic control unit information softkey.

Allows operator to view control units, addresses, message counts, control unit part numbers and serial numbers, software part numbers and versions (see your John Deere Dealer).

CAN Bus Information Softkey (E):

Select CAN bus information softkey.

Allows operator to view if network status is active or not active, total message counts, and CAN high or low voltages (see your John Deere Dealer).

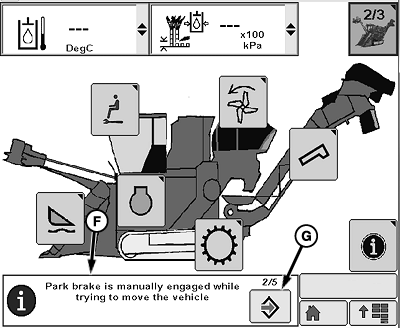

Notification Pop-Ups (F):

Notifications are information Diagnostic Trouble Codes (DTC) that will popup at the bottom of the screen without covering the entire page.

Notifications can be manually acknowledged by pressing accept softkey (G) on the notification popup.
