Windshield Washer Reservoir

NOTE:

T8120002519
T8120002519-UN-18DEC12

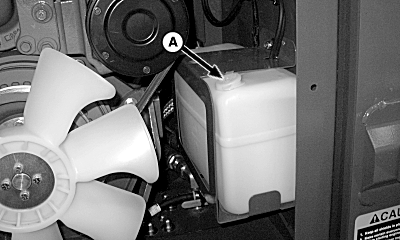

A - Windshield Washer Fluid Reservoir

Windshield fluid reservoir is located inside engine compartment door on left-hand side of machine.

As necessary, check and refill reservoir (A) with clean water or automobile windshield washer solution.

KR43067,0000C9F-19-20130125
