Windshield Wiper and Windshield Washer Switch

NOTE:

H96489
H96489-UN-22JUN11

T8120002650
T8120002650-UN-09JAN13

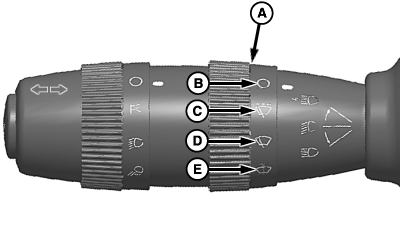

A - Windshield Wiper and Washer Switch

B - OFF Position

C - Wiper Intermittent Position

D - Wiper ON Position

E - Windshield Washer

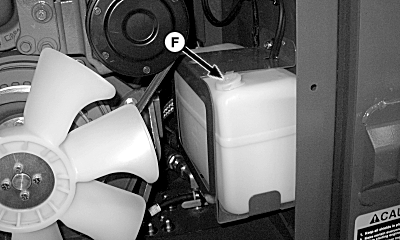

F - Tank

Key switch must be ON or machine running for windshield wiper and windshield washer to operate.

Windshield wiper and washer switch (A) on steering column is used to control the following:

  • OFF Position (B)
  • Wiper Intermittent Operation (C)
  • Wiper ON Position (D)
  • Windshield Washer (E)

To add washer fluid to machine:

  1. Open left-hand engine compartment door.
  2. Add washer fluid to tank (F).
  3. Close tank cap and compartment door.
