Replace Beacon Light Bulb

1.
   H96613-UN-25MAY10


   H96614-UN-25MAY10


   H96615-UN-25MAY10

   A - Lens

   B - Clip

   C - Locking Tab

   D - Bulb Assembly

   E - Connector

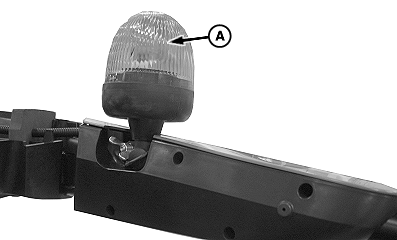

   Push down on lens (A) and turn counterclockwise to remove.

---

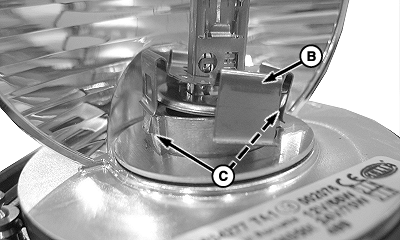

2. Pry clip (B) from locking tab (C).

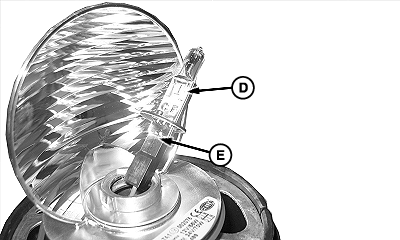

3. Remove bulb assembly (D) from connector (E).

4. NOTE: Replacement light bulbs are sensitive to skin contact. Wear protective gloves or avoid touching light bulb surface.

   Replace bulb and install in reverse order.

5. Repeat on remaining lights as needed.
