Dimensions
NOTE:
T8T1546-UN-28JAN15
Track Machine Shown
Maximum heights shown depending on optional equipment.
|

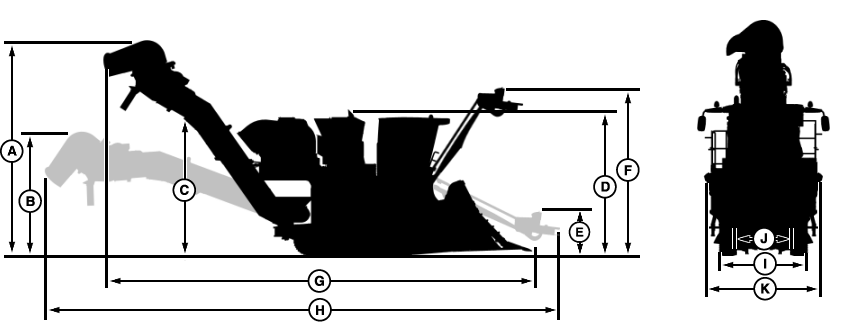

Harvester Dimensions |
||
|---|---|---|
|
Reference |
CH570 |
CH670 |
|
A |
6.23 m (20.43 ft.) |
6.23 m (20.43 ft.) |
|
B |
3.55 m (11.65 ft.) |
3.55 m (11.65 ft.) |
|
C |
3.66 m (12.00 ft.) |
3.66 m (12.00 ft.) |
|
D |
4.29 m (14.07 ft.) |
4.29 m (14.07 ft.) |
|
E |
1.36 m (4.46 ft.) |
1.36 m (4.46 ft.) |
|
F |
5.18 m (16.99 ft.) |
5.18 m (16.99 ft.) |
|
G |
12.62 m (41.38 ft.) |
12.62 m (41.38 ft.) |
|
H |
15.00 m (49.21 ft.) |
15.00 m (49.21 ft.) |
|
I |
2.08 m (6.82 ft.) |
2.80 m (9.18 ft.) |
|
J |
1.51 m (4.95 ft.) |
1.99 m (6.51 ft.) |
|
K |
2.81 m (9.21 ft.) |
3.74 m (12.25 ft.) |
|
