Alarm and Operator Controls Setup

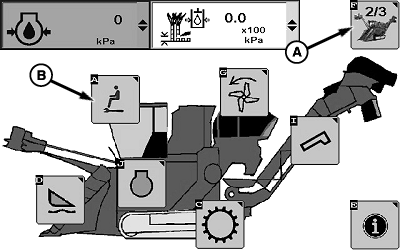

T8T784-UN-03OCT14

Sugarcane Main Page 2 Of 3

A - Sugar Main Softkey

B - Alarm and Operator Controls Setup Softkey

Select alarm and operator controls setup softkey (B).

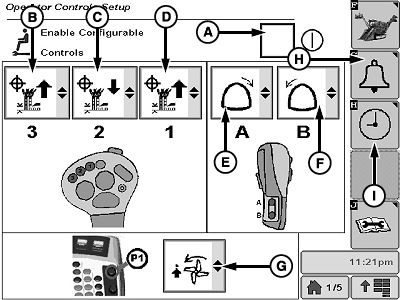

T8T1885-UN-21JAN15

Allows operator to enable configurable controls on multi-function lever and armrest console.

1, 2, 3, A, and B Switches (B—F)

Configurable switches are assignable to control:

• All On
• Base Cutter Return to Cut
• Floating Crop Divider Float
• Left-hand Crop Divider Float
• Right-hand Crop Divider Float
• Base Cutter End of Row
• Crop Divider End of Row
• Base Cutter Target Height Up Indicator
• Base Cutter Target Height Down Indicator
• Topper Discharge Direction Toggle
• Manual Fan Reversal
• App Toggle
• Primary Hood Rotate Counterclockwise
• Primary Hood Rotate Clockwise
• Track Steer Bias Toggle
• All End of row
• Base Cutter Set Point Capture

P1 Dial (G)

P1 dial is assignable to control:

• Primary Extractor Speed Set Point
• Base Cutter Height Set Point
• Base Cutter Pressure Set Point
• Elevator Speed Set Point

Alarm Setup Softkey (H)

Allows operator to access alarm setup page.

Page Timeout Settings Softkey (I)

Allows operator to access page timeout settings page.

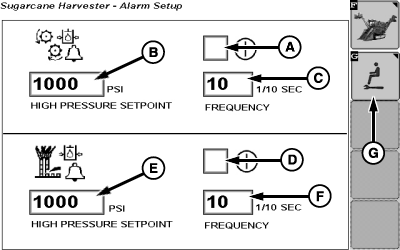

T8T1886-UN-21JAN15

Allows operator to enable chopper high-pressure alarm.

Chopper High-Pressure Set Point (B)

Allows operator to set chopper high-pressure alarm set point.

Chopper High-Pressure Alarm Frequency (C)

Allows operator to set frequency before alarm sounds when chopper high-pressure set point is exceeded.

Base Cutter High-Pressure Alarm Enable (D)

Allows operator to enable base cutter high-pressure alarm.

Base Cutter High-Pressure Set Point (E)

Allows operator to set base cutter high-pressure alarm set point.

Base Cutter High-Pressure Alarm Frequency (F)

Allows operator to set frequency before alarm sounds when base cutter high-pressure set point is exceeded.

Operator Controls Setup Softkey (G)

Allows operator to access operator controls setup page.

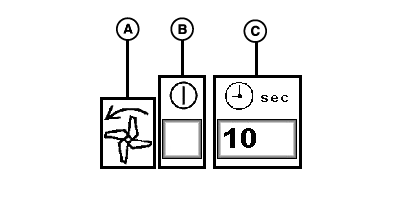

T8T787-UN-11JUL14

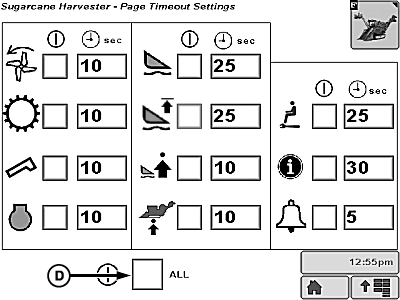

T8T788-UN-28APR15

A - Page

B - Enable Box

C - Page Timeout Set point

D - Enable All Box

Pages (A) that can be selected:

• Primary Extractor
• Drivetrain Control
• Elevator
• Engine
• Floating Crop Dividers and Contour Base Cutter Height Control
• End of Row
• Floating Crop Dividers and Contour Base Cutter Height Control Sensitivity
• Maximum Harvester Speed
• Operator Controls
• Harvester Activity Monitor
• Alarms

Select enable box (B) for desired page (A) to enable desired page timeout set point (C).

Select enable all box (D) to enable or disable all page timeouts.
