Check Engine Coolant Level

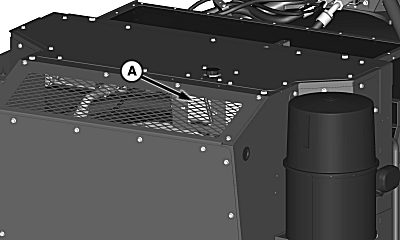

  1. T8T181
    T8T181-UN-16APR14

    Tier 2/Stage II And Tier 3/Stage III

    A - Expansion Tank

    The expansion tank is on the upper left-hand side of the harvester, within the cooling tower.


  2. If coolant level does not appear within marked area of sight gauge, remove expansion tank cap and add fluid.

    NOTE: Verify engine coolant level at expansion tank (A) through shield.

  3. If necessary, add coolant to expansion tank.

WM05597,00013B2-19-20150910
