Dimensions (S670)

NOTE: Dimensions are approximate and subject to change without notice.

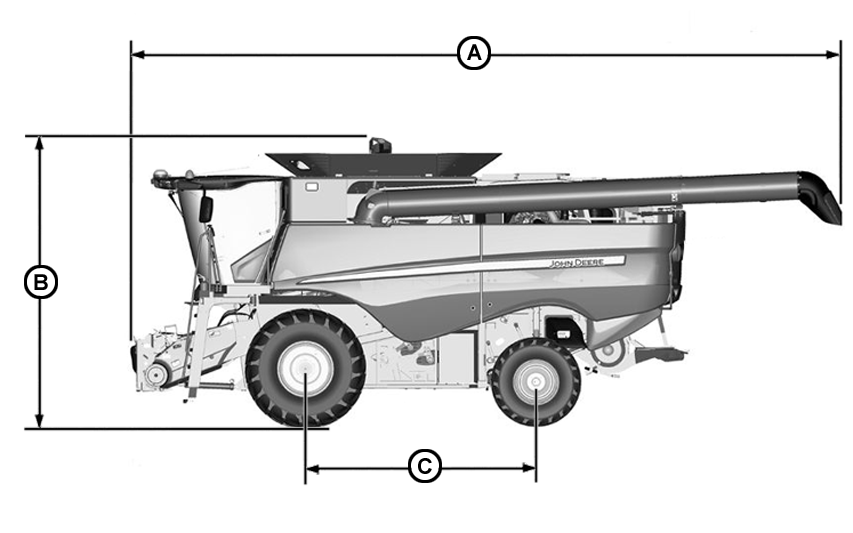

CQ289978
CQ289978-UN-07MAY13

Dimension

7.9 m (26 ft.) Unloading Auger

A

11.8 m (38.7 ft.)

B

4.64 m (15.2 ft.)

C

3.6 m (11.8 ft.)

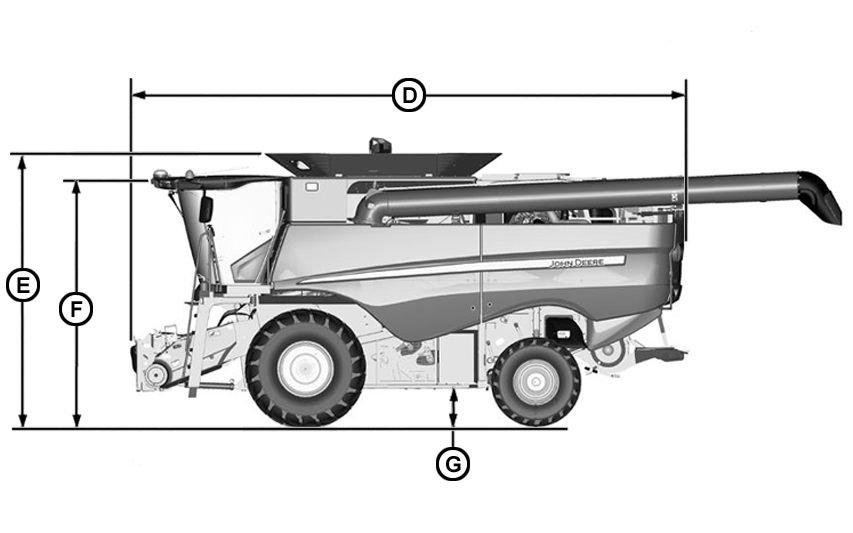

CQ289979
CQ289979-UN-07MAY13

Dimension

7.9 m (26 ft.) Unloading Auger

D

8.40 m (27.5 ft.)

E

4.4 m (14.4 ft.)

5.2 m (17 ft.) with Cover

F

3.8 m (12.5 ft.)

G

0.51 m (1.7 ft.)

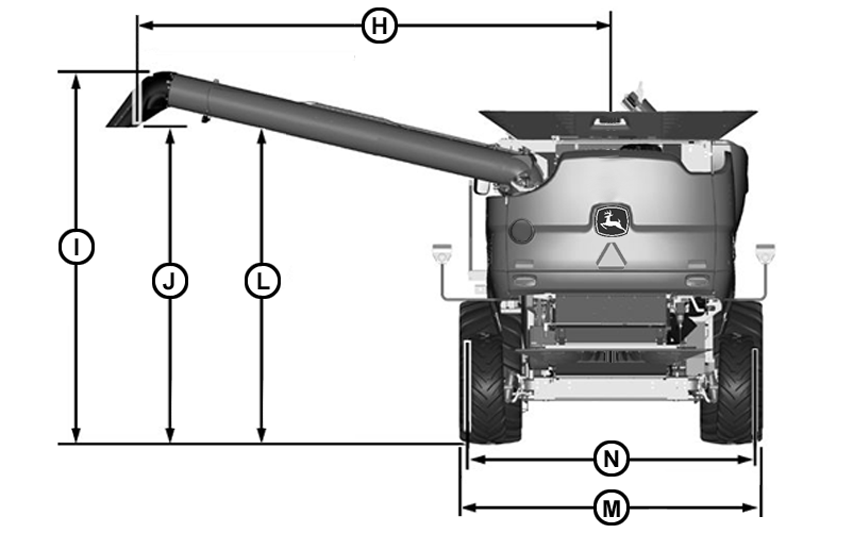

CQ289980
CQ289980-UN-15MAY13

Dimension

7.9 m (26 ft.) Unloading Auger

H

7.66 m (25.1 ft.)

I

5.37 m (17.6 ft.)

J

4.66 m (15.3 ft.)

L1

4.72 m (15.5 ft.)

M2

3.96 m (13 ft.)

Front Tires

N2

4.63 m (15.2 ft.)

Rear Tires

1 Dimension is measured 1.22 m (4 ft.) from the grain spill point. This represents the unloading auger when centered over the grain cart.
2 Due to different tire configurations, row spacings, axle configurations, wheel offsets, axle positions and spindles types, machine widths will vary. Measurements given in chart are for minimum and maximum widths. For more detailed width information, see your John Deere dealer.
