Grain Tank Fill Sensors—Adjusting

CAUTION:

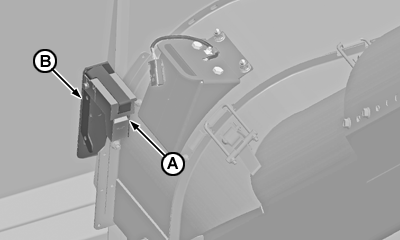

CQ289989-UN-28MAY13

Fill Sensor S660

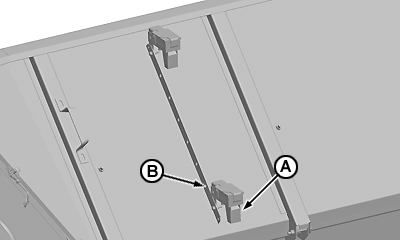

CQ290012-UN-07JUN13

Fill Sensor S670 and S680

A - 3/4 Full Sensor

B - Slot

NOTE: Header drive must be engaged for buzzer to sound.

Grain Tank 3/4 Full Sensor:

Grain tank 3/4 full sensor (A) is located on the front right-hand side of the clean grain loading auger on S660 machine.

Grain tank 3/4 full sensor (A) is located on the right-hand grain tank cover above the clean grain loading auger on S670 and S680.

Grain tank 3/4 full icon appears on the CommandCenter display indicating grain tank is almost full. Grain tank 3/4 full icon displays immediately, but a two second delay occurs between the tripping of the sensor and the buzzer sounding.

When grain tank is 3/4 full, beacon lights illuminate to provide a signal to the grain cart operator that grain tank is nearly full.

Adjust sensor by moving it higher or lower in slot (B) to adjust the switch "trip" point. The higher the sensor is positioned, the fuller the grain tank will be at the time the buzzer sounds.

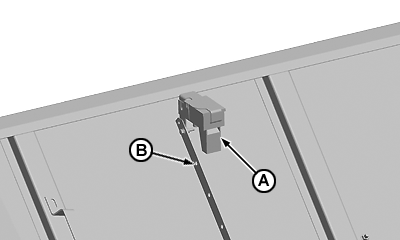

CQ290013-UN-07JUN13

Grain Tank Full Sensor

A - 4/4 (Full) Sensor

B - Slot

Grain tank 4/4 full sensor (A) is located on the right-hand grain tank cover above the clean grain loading auger and grain tank 3/4 full sensor.

Grain tank 4/4 full icon appears on the CommandCenter display indicating grain tank is full. Grain tank 4/4 full icon displays immediately, but a two second delay occurs between the tripping of the sensor and the buzzer sounding.

Adjust sensor by moving it higher or lower in slot (B) to adjust the switch "trip" point. The higher the sensor is positioned, the fuller the grain tank will be at the time the buzzer sounds.
