Spreader (General Information)

CAUTION: Do not let anyone stand behind spreader while it is running. Shut OFF engine, set parking brake and remove key before adjusting spreader.

Before performing service or maintenance on raised spreader, fully insert lockout pin into place.

CQ289996-UN-05JUN13

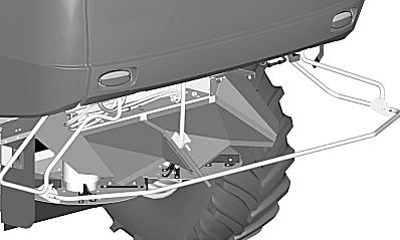

Single Speed Spreader

CQ289997-UN-05JUN13

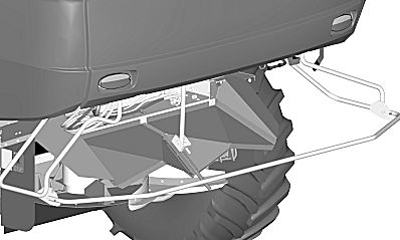

Dual Speed Spreader

NOTE: For in cab spreader adjustment switches, see CommandTouch™ Armrest Console section for further information.
