Spreader—Windrow Position

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised spreader, fully insert lockout pin into place.

IMPORTANT: Spreader hoop MUST always be in the ”down” position as shown when operating.

NOTE: Spreader can be rotated upward to allow material to discharge into a windrow pattern.

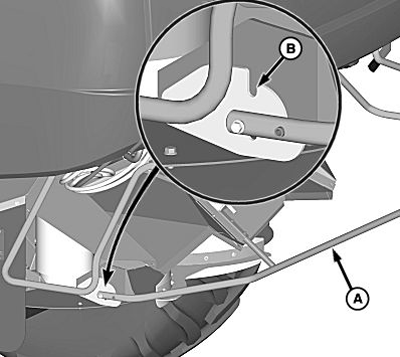

Raise spreader hoop (A) until it aligns with notch (B) when accessing or raising spreader to windrow position.

CQ289998-UN-05JUN13

A - Spreader Hoop

B - Notch

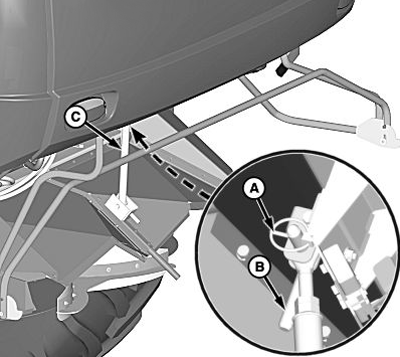

Remove quick-lock pin (A) from pin (B) and lower support tube (C).

CQ289999-UN-05JUN13

A - Quick-Lock Pin

B - Pin

C - Support Tube

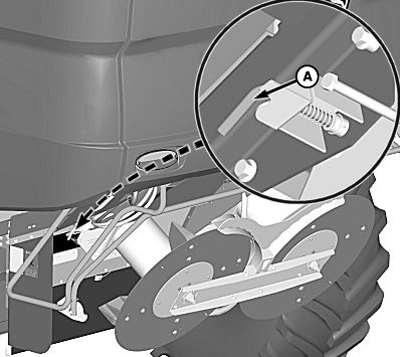

NOTE: Place pin back into storage position and retain with quick-lock pin.

CQ290000-UN-05JUN13

CQ290001-UN-05JUN13

A - Pin

B - Handle

C - Pin

D - Latch Assembly

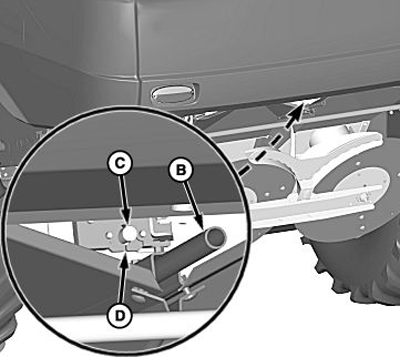

Raise spreader with handle (B) until pin (C) fully engages with latch assembly (D).

NOTE: Set spreader speed to zero, refer to Spreader Speed Adjust Switch in CommandTouch™ Armrest Console section for further information.
