Spreader—Lowering

CAUTION:

CQ290002-UN-05JUN13

CQ290003-UN-05JUN13

A - Pin

B - Pin

C - Latch Assembly

D - Handle

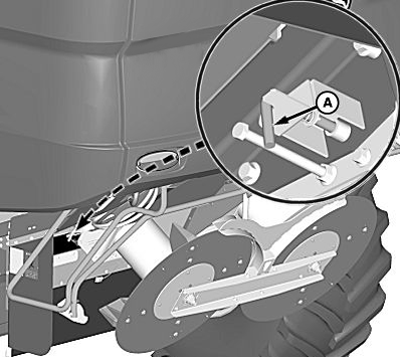

Rotate and place pin (A) onto bracket to unlock spreader.

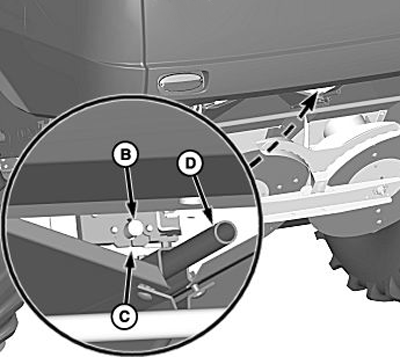

Release pin (B) from latch assembly (C) and lower spreader with handle (D).

Raise support tube (C) until it aligns with hole and retain with pin (B) and quick-lock pin (A).

CQ289999-UN-05JUN13

A - Quick-Lock Pin

B - Pin

C - Support Tube

NOTE: Increase spreader speed until desired spread width is reached, refer to Spreader Speed Adjust Switch in CommandTouch™ Armrest Console section for further information.
