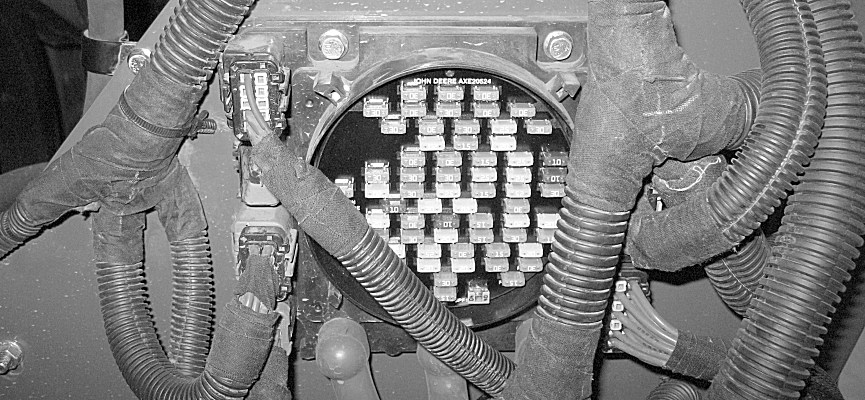

Fuse Center (S660 and S670)

NOTE:

H105754-UN-05SEP12

• F1 — F6 Not Used
• F7 (30 A) Right Control Unit 1 (RC1) Power 1
• F8 — Not Used
• F9 (30 A) Right Power Module 1 (RPM1) Power 5
• F10 (Spare) Cab Control Unit 1 (CC1) Power 2
• F11 (20 A) Right Power Module 1 (RPM1) Power 3
• F12 (20 A) Right Power Module 1 (RPM1) Power 2
• F13 — Not Used
• F14 (30 A) Cab Power Module A (CPBMA) Power 1
• F15 (20 A) Right Power Module 1 (RPM1) Power 4
• F16 — Not Used
• F17 (30 A) Moisture Sensor Power
• F18 (25 A) Right Control Unit 1 (RC1) Power 2
• F19 (20 A) Cab Power Module A (CPMA) Power 3
• F20 (15 A) Dome Light and Power Mirrors
• F21 (15 A) Cab Power Module B (CPMB) Power 4
• F22 (30 A) Cab Control Unit 1 (CC1) Power 1
• F23 (15 A) Cab Power Module B (CPMB) Power 3
• F24 (20 A) Cab Power Module B (CPMB) Power 5
• F25 — Not Used
• F26 (30 A) Miscellaneous Cab Power 3
• F27 (30 A) Left Control Unit 1 (LC1) Power 2
• F28 (20 A) Recirculation Fan Power (2 of 2)
• F29 ( 20 A) Recirculation Fan Power (1 of 2)
• F30 (15 A) Auxiliary Power Outlets
• F31 (10 A) Machine Wireless Gateway (MWG), Satellite, Radio, Primary Display Unit (PDU)
• F32 (30 A) Left Power Module 1 (LPM1) Power 4
• F33 (20 A) Accessory Power
• F34 (30 A) Left Power Module 1 (LPM1) Power 1
• F35 — Not Used
• F36 (30 A) Right Power Module 1 (RPM1) Power 1
• F37 (20 A) Seat Compressor
• F38 (20 A) Cab Switch Module (CSM), Secondary Display Unit (SDU), GreenStar 2 (GS2), Steering Column Lever (SCL), Subwoofer
• F39 (10 A) AutoTrac Power
• F40 (30 A) Cab Power Module A (CPMA) Power 4
• F41 (25 A) Cab Power Module A (CPMA) Power 2
• F42 (15 A) Cab Power 2 Miscellaneous: GreenStar Display, StarFire, Primary Display Unit, Printer
• F43 (25 A) Engine Control Unit (ECU) Power 3
• F44 — Not Used
• F45 (30 A) Left Power Module 1 (LPM1) Power 2
• F46 (30 A) Left Power Module 1 (LPM1) Power 3
• F47 (10 A) Automatic Temperature Control (ATC) Power
• F48 (25 A) Engine Control Unit (ECU) Power 1
• F49 (25 A) Cab Power Module A (CPMA) Power 5
• F50 — Not Used
• F51 (30 A) Left Control Unit 1 (LC1) Power 1
• F52 (30 A) Cab Power Module B (CPMB) Power 2
• F53 — Not Used
• F54 (10 A) Vehicle Control Module (VCM) Power (If Equipped)
• F55 (35 A) Engine Control Unit (ECU) Power 2
• F56 (15 A) Fuel Transfer Pump
• F57 — Not Used
• F58 (30 A) Cab Power Module B (CPMB) Power 1
• F59 — F61 Not Used
• F62 (25 A) Engine Control Unit (ECU) Power 1
• F63 (15 A) Dosing Pump Power
• F64 — F66 Not Used
• F67 (30 A) Auxiliary Out of Cab Power
• F68 (25 A) Left Power Module 1 (LPM1) Power 5
• F69 (30 A) Flex Residue Chopper Power 2 (If Equipped)
• F70 — F72 Not Used
• F73 (30 A) Left Control Unit 2 (LC2) Power 1
• F74 (30 A) Flex Residue Chopper Power 1 (If Equipped)
• F75 — F77 Not Used
• F78 (30 A) Left Control Unit 2 (LC2) Power 2
• F79 — F80 Not Used
