Chopper Blades—Centering

CAUTION:

CQ290014
CQ290014-UN-13JUN13

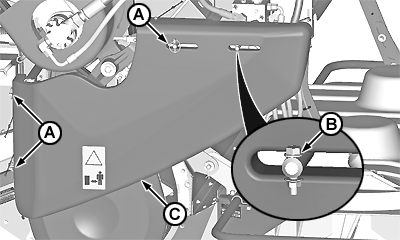

A - Quick-Lock Pins

B - Cap Screw

C - Shield

Shut OFF engine, set parking brake and remove key.

Raise chopper fully.

Remove quick-lock pins (A).

Remove cap screw (B).

Remove shield (C).

CQ290522
CQ290522-UN-15DEC14

CQ290523
CQ290523-UN-15DEC14

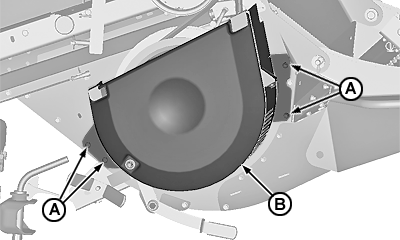

A - Cap Screws (4 Used)

B - Shield

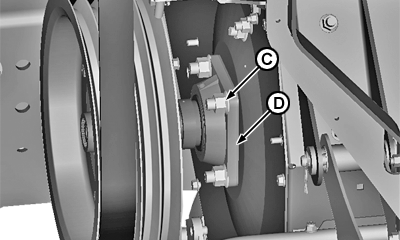

C - Cap Screws (4 Used)

D - Locking Collar

Remove cap screws (A) and shield (B).

Loosen cap screws (C) and locking collar (D) on left-hand side.

H98148
H98148-UN-21SEP10

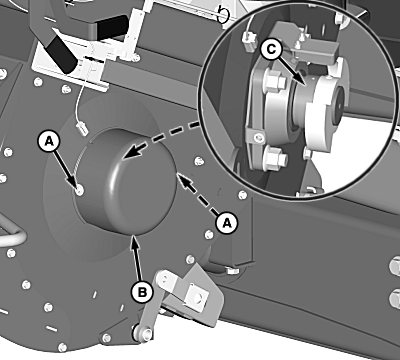

A - Cap Screws (2 Used)

B - Bearing Cover

C - Locking Collar

Remove cap screws (A) and bearing cover (B).

Loosen set screw and locking collar (C) on right-hand side.

H87317
H87317-UN-30JAN07

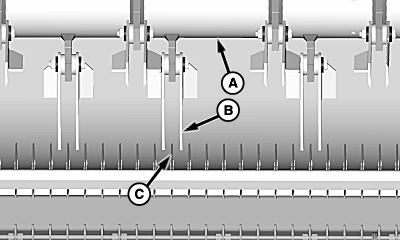

A - Chopper Rotor

B - Rotor Blades

C - Stationary Knives

Position chopper rotor (A) right or left to ensure all rotor blades (B) clear stationary knives (C).

Tighten locking collars on both sides in direction of rotation and retain with set screws.

Install bearing cover on right-hand side and chopper shields on left-hand side.
