Chopper Drive Speeds—Changing—Type A

CAUTION:

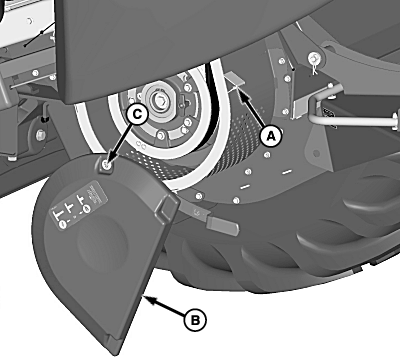

H105440-UN-18MAY12

A - Latch

B - Shield

C - Pivot

NOTE: To release the latch (A), a tool is needed.

Release latch (A) and rotate shield (B) on pivot (C).

Slow Speed Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

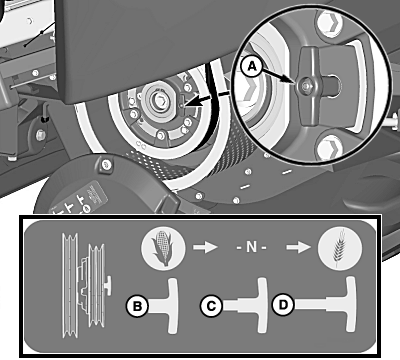

H105441-UN-18MAY12

A - Shifter Handle

B - Slow Speed Position

C - Neutral Position

D - High Speed Position

• Corn

Neutral Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

Move shifter handle (A) to position (C).

High Speed Position:

NOTE: It may be necessary to rotate sheave a small amount while moving shifter handle.

Move shifter handle (A) to position (D).

• Grain

Close shield and retain with latch.
