Chopper Drive Belt Tension—Adjusting—Type A

CAUTION:

CQ290014
CQ290014-UN-13JUN13

A - Quick-Lock Pins

B - Cap Screw

C - Shield

Shut OFF engine, set parking brake and remove key.

NOTE: Lower chopper fully to properly tension belts.

Remove quick-lock pins (A).

Remove cap screw (B).

Remove Shiels (C).

H98151
H98151-UN-21SEP10

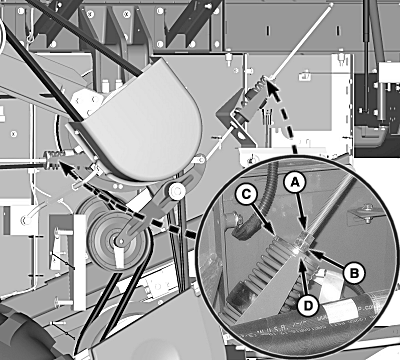

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen lock nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

Install shield and retain with quick-lock pins.
